Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Ống khoan xoay | Loại máy: | Dụng cụ khoan |
|---|---|---|---|
| Vật liệu: | Thép mangan cao / Thép cacbon, thép không gỉ | Loại xử lý: | vật đúc |
| Sử dụng: | Khoan tốt | cường độ căng thẳng: | 100-5000KN |
| Màu sắc: | Đen / Như được thiết kế cho khách hàng | Các ngành áp dụng: | Năng lượng & Khai thác |
| KÍCH CỠ: | B/N/H/P WL hoặc tùy chỉnh | Phạm vi đá phù hợp: | Đá mềm, cứng vừa, đá cứng |
| Kiểu: | Ống khoan xoay | ||
| Làm nổi bật: | 571mm Drill Pipe Swivel,NC31 Drill Pipe Swivel |
||

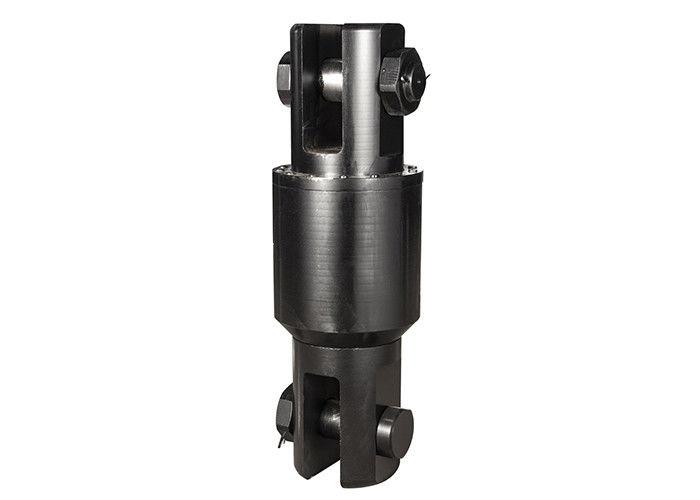

Rotary Drillilng Rig Swivel Piling Foundation Drilling Rig Kelly Bar Swivel
Product Description
Rotary tools for drill pipe deployment can achieve independent upper drill string rotation. More weight can be used to push the liner into a wide range of drilling wells. It can be 100% mechanically locked without flow, circulation or pressure. Once locked, it can be locked. When it rotates to the right or left in tension or compression, prevent potentially harmful rotation and torque from being applied to it
| Type | Traction end connection mode | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | kg |
| 10T Swivel Series | Binaural | 28 | 99 | 317 | 28 | 33 | 10.5 |
| 15T Swivel Series | Binaural | 32 | 109 | 360 | 32 | 38 | 19 |
| 18T Swivel Series | Binaural | 32 | 136 | 352 | 30 | 35 | 20.5 |
| 20T Swivel Series | Binaural | 36 | 146 | 415 | 36 | 44 | 26.5 |
| 25T Swivel Series | Binaural | 38 | 156 | 433 | 38 | 42 | 29 |
| 30T Swivel Series | Binaural | 39 | 166 | 477 | 40 | 50 | 41 |
| 40T Swivel Series | Binaural | 42 | 192 | 543 | 48 | 60 | 70 |
| 50T Swivel Series | Binaural | 61 | 210 | 571 | 59 | 75 | 100 |
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | kg | ||
| 50T Swivel Series | NC31 | 60 | 210 | 571 | 60 | 75 | 100 |
| 60T Swivel Series | NC38 | 65 | 234 | 672 | 65 | 90 | 125 |
| 80T Swivel Series | NC46 | 65 | 244 | 697 | 65 | 90 | 175 |
| 100T Swivel Series | NC50 | 85 | 270 | 821 | 84 | 108 | 240 |
| 150T Swivel Series | NC50 | 100 | 314 | 904 | 102 | 135 | 330 |
| 200T Swivel Series | NC50,5-1-2FH | 110 | 340 | 1177 | 118 | 150 | 415 |
| 300T Swivel Series | NC50,5-1-2FH | 125 | 390 | 1282 | 122 | 173 | 800 |
| 400T Swivel Series | 6-5-8FH | 150 | 480 | 1530 | 150 | 216 | 940 |
| 500T Swivel Series | 6-5-8FH | 170 | 570 | 1651 | 192 | 248 | 2010 |
Features
The characteristics of "BAIWEI" drill rods
Two force regions
The threads of the non-dig drill pipe produced in the company have two Force regions. Such structure is designed to reduce the resistance that A drill faces during the construction process. The pipes are designed to handle high torque while retaining a large inside Diameter for superior drilling fluid flow so that the threads will not deform.
Optimal design
Drill rods through the dispersion of equal strength And stress optimal design, can give full play to the Potential of drill material.
Forged connector
Connector material had been forged, that have Improved material density, changed the fibrous Texture of the material, so that the general mechanical Properties of the material have been more improved Nitride, phosphide or copper plating processing Nitride, phosphide or copper plate processing to the rod ends Have ensured thread anti-corrosion, anti-bonding, and improved Joint surface fatigue resistance.
Upsetting & thicking
Upsetting & thicking to the rods have improved The metallurgical structure and enhanced the Impact toughness, that have ensured comprehensive Mechanical properties and the friction weld seals Not be broken.
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
