Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Búa đập ống khí nén | Các ngành áp dụng: | Năng lượng & Khai thác |
|---|---|---|---|
| Kiểu: | Búa đập | Loại máy: | Thiết bị khoan |
| Vật liệu: | thép cacbon | Loại xử lý: | Ném / đúc |
| Sử dụng: | Khoan tốt | người mẫu: | BH610 |
| Đường kính ngoài của máy chủ (mm): | 610/620 | Chiều dài máy chủ (mm): | 3400 |
| Trọng lượng máy chủ (kg): | 5100 | Tiêu thụ không khí (m3/phút): | 20-40 |
| Áp suất không khí (Mpa): | 0,4-0,7 | Tác động tối đa tức thời (kN): | 20000 |
| Đường kính đặt ống áp dụng (mm): | 529-1800 | Đường kính đặt ống tiêu chuẩn (mm): | 820.920.1020 |
| Làm nổi bật: | 20000kn Pneumatic Pipe Ramming,Pneumatic Pipe Ramming L3400mm |
||
Pneumatic Pipe Ramming Hammer For Hdd Well Drilling
Product Description
The BAIWEI pneumatic pipe rammer attaches to the back of steel pipes or casings and hammers them into the ground. Pipe can be driven as one continuous run or in sections depending on the space available at the insertion site. As the pipe rammer pushes the pipe or casing through the soil, rocks and other obstacles are “swallowed up.” Spoil is removed by using compressed air and/or water, augers, or skid steers on larger diameter casings.
| Model | Host outer diameter (mm) | Host length (mm) | Host weight (kg) | Air consumption (m3/min) | Air pressure (MPa) | Instant maximum impact (kN) | Applicable pipe laying diameter (mm) | Standard pipe laying diameter (mm) |
| BH190S | 186/194 | 1320 | 160 | 2-6 | 0.4-0.7 | 1500 | 89-273 | 108,159,219 |
| BH260 | 260/265 | 1390 | 320 | 3-8 | 0.4-0.7 | 2600 | 159-426 | 273,325,426 |
| BH300 | 290/300 | 2100 | 750 | 4-11 | 0.4-0.7 | 4500 | 219-630 | 325,426,529 |
| BH350 | 350/365 | 2400 | 1200 | 6~17 | 0.4-0.7 | 6000 | 273-Φ820 | 426,529,630 |
| BH420 | 415/425 | 2800 | 1950 | 9-21 | 0.4-0.7 | 8000 | 325-1200 | 426,529,630 |
| BH510 | 510/520 | 3200 | 3400 | 12-28 | 0.4-0.7 | 12000 | 426~1500 | 630,720,820 |
| BH610 | 610/620 | 3400 | 5100 | 20-40 | 0.4-0.7 | 20000 | 529-1800 | 820,920,1020 |

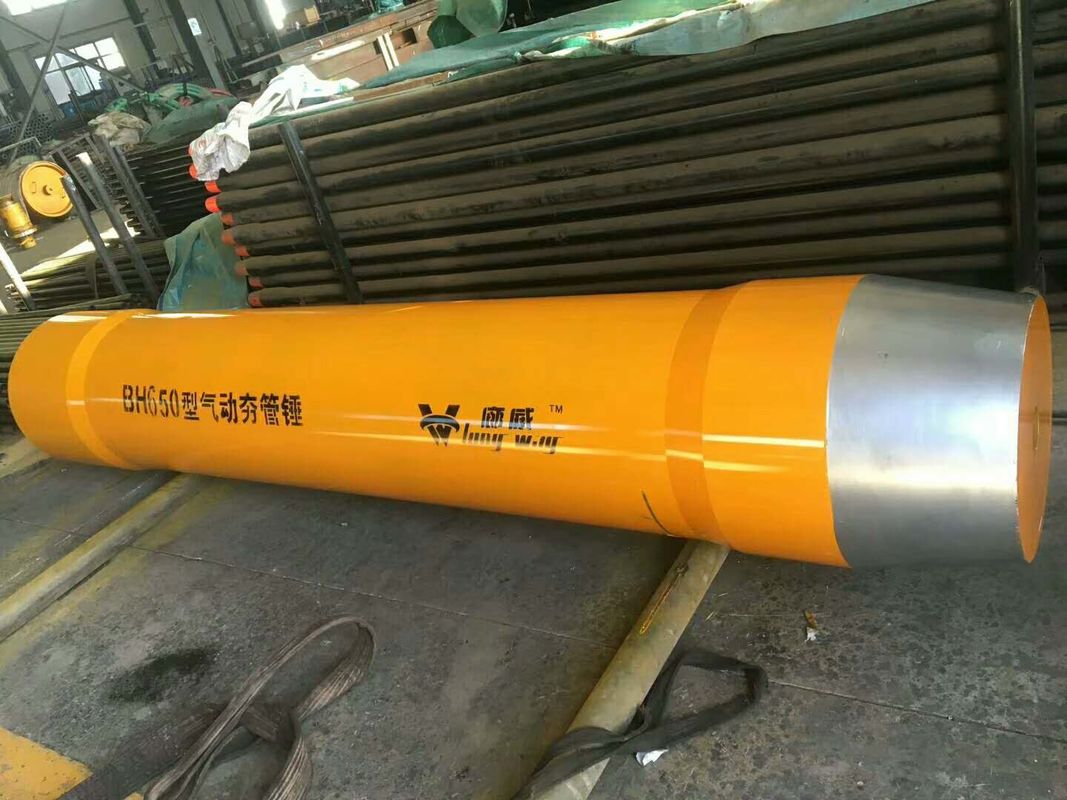

| BH650 | 620/650 | 3600 | 5500 | 20-50 | 0.4-0.9 | 25000 | 529~2200 | 820,920,1020 |
| BH700 | 700/710 | 3680 | 7100 | 28-60 | 0.4-0.7 | 28000 | 630-2500 | 1020,1120,1220 |
Advantage
Anvil after clamping
The back anvil is the mark of BAIWEI perforation tool design. The clamping load provided by this function is 200% higher than that of competing products, making it the safest component on the market.
Push chuck
The BAIWEI tamper tool can be set into a conical locking chuck, thereby reducing the time for setting up and disassembly. The chuck can be fully engaged with the steel housing by 6 inches (152 mm), thereby firmly locking the tip of the knife on the housing, eliminating the need for a support frame, and reducing the opening of the sleeve, thereby saving working time.
Collet jack
For larger size collets, BAIWEI provides collet lifters, which can easily move, load and unload heavy collets on site.
Accessories
BAIWEI provides a wide range of ramming accessories, such as lubrication systems, seal kits, balanced collet lifters, pipe pigs and plunger sleeves. All these are designed to make your next job more efficient.
Our Services
1. The drill pipe is strictly in accordance with API ISO9001 standard
2. If you find quality problems within one month after returning the package.
3. All fulfill obligations and responsibilities in strict accordance with the contract
4. 24 hours online customer service, please feel free to contact us.
