Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Búa đập ống khí nén | Các ngành áp dụng: | Năng lượng & Khai thác |
|---|---|---|---|
| Kiểu: | Búa đập | Loại máy: | Thiết bị khoan |
| Vật liệu: | thép cacbon | Loại xử lý: | Ném / đúc |
| Sử dụng: | Khoan tốt | người mẫu: | BH420 |
| Đường kính ngoài của máy chủ (mm): | 415/425 | Chiều dài máy chủ (mm): | 2800 |
| Trọng lượng máy chủ (kg): | 1950 | Tiêu thụ không khí (m3/phút): | 21-9 |
| Áp suất không khí (Mpa): | 0,4-0,7 | Tác động tối đa tức thời (kN): | 8000 |
| Đường kính đặt ống áp dụng (mm): | 325-1200 | Đường kính đặt ống tiêu chuẩn (mm): | 426.529.630 |
| Làm nổi bật: | L2800mm Pneumatic Pipe Ramming Hammer,425mm OD. pipe rammer,425mm OD Pneumatic Pipe Ramming Hammer |
||

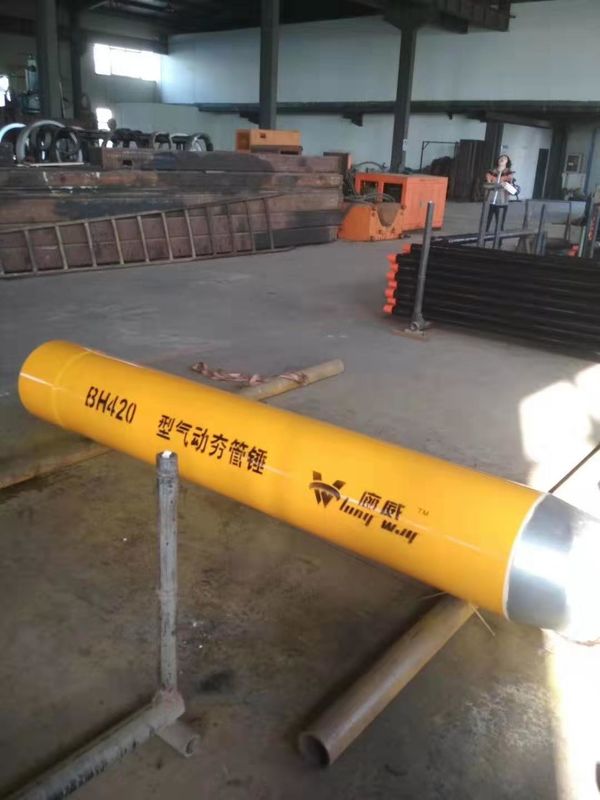

BH420 425mm Host Outer Diameter Pneumatic Pipe Ramming Hammer
Product Description
The machine has the characteristic of high precision for pipe laying,larger diameter for the pipe to be laid, strong adaptability of formations, the equipment is simple, less investment, lower construction cost. Rammer is essentially a impactor with low frequency, large pneumatic hammer impact energy. It is a machine with the compressed air power to drive the cylinde in the hammer blow hammering block.
| Model | Host outer diameter (mm) | Host length (mm) | Host weight (kg) | Air consumption (m3/min) | Air pressure (MPa) | Instant maximum impact (kN) | Applicable pipe laying diameter (mm) | Standard pipe laying diameter (mm) |
| BH190S | 186/194 | 1320 | 160 | 2-6 | 0.4-0.7 | 1500 | 89-273 | 108,159,219 |
| BH260 | 260/265 | 1390 | 320 | 3-8 | 0.4-0.7 | 2600 | 159-426 | 273,325,426 |
| BH300 | 290/300 | 2100 | 750 | 4-11 | 0.4-0.7 | 4500 | 219-630 | 325,426,529 |
| BH350 | 350/365 | 2400 | 1200 | 6~17 | 0.4-0.7 | 6000 | 273-Φ820 | 426,529,630 |
| BH420 | 415/425 | 2800 | 1950 | 9-21 | 0.4-0.7 | 8000 | 325-1200 | 426,529,630 |
| BH510 | 510/520 | 3200 | 3400 | 12-28 | 0.4-0.7 | 12000 | 426~1500 | 630,720,820 |
| BH610 | 610/620 | 3400 | 5100 | 20-40 | 0.4-0.7 | 20000 | 529-1800 | 820,920,1020 |
| BH650 | 620/650 | 3600 | 5500 | 20-50 | 0.4-0.9 | 25000 | 529~2200 | 820,920,1020 |
| BH700 | 700/710 | 3680 | 7100 | 28-60 | 0.4-0.7 | 28000 | 630-2500 | 1020,1120,1220 |
Advantage
Push chuck
The BAIWEI tamper tool can be set into a conical locking chuck, thereby reducing the time for setting up and disassembly. The chuck can be fully engaged with the steel housing by 6 inches (152 mm), thereby firmly locking the tip of the knife on the housing, eliminating the need for a support frame, and reducing the opening of the sleeve, thereby saving working time.
Collet jack
For larger size collets, BAIWEI provides collet lifters, which can easily move, load and unload heavy collets on site.
Accessories
BAIWEI provides a wide range of ramming accessories, such as lubrication systems, seal kits, balanced collet lifters, pipe pigs and plunger sleeves. All these are designed to make your next job more efficient.
Our Services
1. The drill pipe is strictly in accordance with API ISO9001 standard
2. If you find quality problems within one month after returning the package.
3. All fulfill obligations and responsibilities in strict accordance with the contract
4. 24 hours online customer service, please feel free to contact us.
