Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | công cụ ổ cứng | Các ngành áp dụng: | Công trình xây dựng, Năng lượng và khai thác mỏ, Xây dựng cơ sở hạ tầng |
|---|---|---|---|
| Kiểu: | mũi doa | Loại máy: | Dụng cụ khoan |
| Vật liệu: | thép | Loại xử lý: | vật đúc |
| Đường kính bên ngoài: | 200mm-1000mm | Ứng dụng: | khoan định hướng ngang |
| Cách sử dụng: | Đối với giàn khoan định hướng ngang | Dịch vụ OEM: | Chấp nhận |
| Làm nổi bật: | 73inch E.D. HDD Drilling Guiding Bit,380mm HDD Drilling Guiding Bit |
||

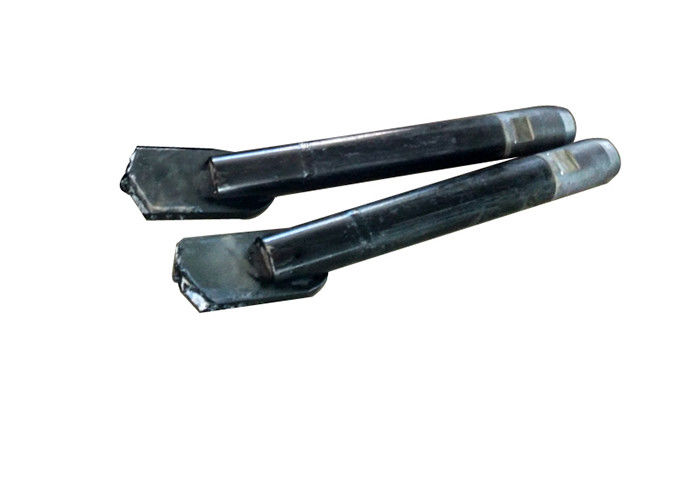

HDD Drill Bit Sonde Housing For Horizontal Directional Drilling
Product Description
It is suitable for horizontal drilling in various complex formations.
Suitable for different paving materials with different diameters and weights.
It is suitable for the requirements of the thrust and pullback force of the ground drilling rig. Choose different types of drilling tools for drilling.
It is suitable for use with different specifications of drill rods and drilling tools.
It is suitable for different geological rock formation working conditions to choose different types of drilling tools.
| Type | Type of threads (K) | External diameter (B) | Carbon storehouse size (L) | Weight (KG) |
| 73 Drill Head Series | 50 Drill pipe threads | Φ73 | 380 | 17 |
| 83 Drill Head Series | 60 Drill pipe threads | Φ83 | 380/480 | 23/27 |
| 83 Drill Head Series | 73 Drill pipe threads | Φ83 | 380/480 | 25/29 |
| 88 Drill Head Series | 76 Drill pipe threads | Φ88 | 380/480 | 26/30 |
| 93 Drill Head Series | 83 Drill pipe threads | Φ93 | 380/480 | 32/36 |
| 108 Drill Head Series | 89 Drill pipe threads | Φ108 | 380/480 | 44/48 |
| 127 Drill Head Series | 102 Drill pipe threads | Φ127 | 380/480 | 73/78 |
| 168 Long Drill Head Series | 127 Drill pipe threads | Φ168 | 480 | 150 |
| 194 Long Drill Head Series | 140 Drill pipe threads | Φ194 | 480 | 270 |
Features
Formation:suitable for sand and medium to very hard soil
Structure:steel casing,welded
Connection with drill rod:octagonal connection direct connection with drill rod
Connection with laid pipe:within or without swivel
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
