Thông tin chi tiết sản phẩm:
|
| dự án: | KX80 | Tải (KN): | 800 |
|---|---|---|---|
| Tốc độ kéo lùi tối đa (m/phút): | 1.5 | Tốc độ kéo lùi tối thiểu (m/phút): | 0,8 |
| Công suất (kw): | 7,5 | Kích thước của máy chủ (chiều dài chiều rộng và chiều cao) (mm): | 600*400*400 |
| Kích thước trạm thủy lực (chiều dài chiều rộng và chiều cao) (mm): | 1200*1000*900 | Trọng lượng vật chủ (kg): | 280 |
| Trọng lượng trạm thủy lực (kg): | 400 | Đường kính vừa vặn của hố ga (mm): | 420 |
| Yêu cầu kích thước giếng (chiều dài) (mm): | 1000 | Thông số kỹ thuật thanh (mm): | Φ68*600 |
| Làm nổi bật: | 800KN Pipe Bursting Machine,1000mm Pipe Bursting Machine |
||

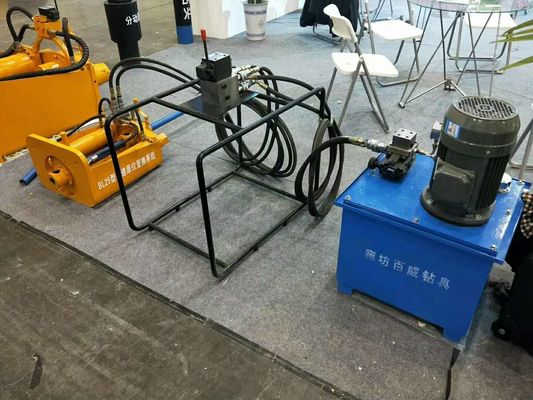

low cost 800KN Pipeline Rehabilitation Pipe Bursting
Description
The pipe replacement system is composed of a pipe splitting machine, Puli rod, cutting machine and expansion head independently developed by Langfang Baiwei Drilling Co., Ltd. It is suitable for casing, cast iron pipe, concrete and steel pipe.
This equipment has the characteristics of saving pipeline space, simple construction, low cost and high efficiency, so it is used in the marking of urban old pipelines.
| Project | Unit | BL25 | BL40 | BL90 | BL180 |
| Load | KN | 250 | 400 | 900 | 1800 |
| Full thrust | KN | 140 | 220 | 480 | 960 |
| Maximum pull-back speed | m/min | 2.6 | 2.9 | 2 | 2 |
| Minimum pull-back speed | m/min | 1.4 | 1.6 | 1.1 | 1.1 |
| Advance rate | m/min | 2.6 | 2.9 | 2 | 2 |
| Power | KW | 4 | 7.5 | 11 | 18 |
| Size of the host (length width and height) | mm*mm*mm | 680*460*370 | 770*575*406 | 1140*855*592 | 1340*1100*760 |
| Hydraulic station size (length width and height) | mm*mm*mm | 800*550*500 | 1200*1000*900 | 1350*1100*1000 | 1500*1300*1200 |
| The host weight | kg | 145 | 260 | 800 | 1700 |
| Hydraulic station weight | kg | 200 | 400 | 600 | 1100 |
| Fit diameter of manhole | mm | 520 | 630 | 1000 | 1200 |
| Require well dimensions (length) | mm | 1000 | 1200 | 2300 | 2600 |
| Rod specifications | mm*mm | Φ42*600 | Φ60*600 | Φ68*1000 | Φ89*1000 |
| Project | Unit | KX80 | KX50 | BX40 |
| Load | KN | 800 | 50 | 40 |
| Full thrust | KN | |||
| Maximum pull-back speed | m/min | 1.5 | 1.5 | 1.8 |
| Minimum pull-back speed | m/min | 0.8 | 0.8 | 0.9 |
| Advance rate | m/min | 1.8 | ||
| Power | KW | 7.5 | 4 | 4 |
| Size of the host (length width and height) | mm*mm*mm | 600*400*400 | 480*400*400 | 413*452*311 |
| Hydraulic station size (length width and height) | mm*mm*mm | 1200*1000*900 | 800*550*500 | 800*550*500 |
| The host weight | kg | 280 | 120 | 120 |
| Hydraulic station weight | kg | 400 | 140 | 200 |
| Fit diameter of manhole | mm | 420 | 420 | 460 |
| Require well dimensions (length) | mm | 1000 | 800 | 800 |
| Rod specifications | mm*mm | Φ68*600 | Φ60*500 | Φ6*500 |
Our Services
1. The drill pipe is strictly in accordance with API ISO9001 standard
2. If you find quality problems within one month after returning the package.
3. All fulfill obligations and responsibilities in strict accordance with the contract
4. 24-hour online customer service, please feel free to contact us.
FAQ
Q: What's your delivery time?
A: Commonly produce need 20 days to produce. Within 3 days if in stock.
Q: How to control the quality?
A: We should be checking & testing everyone drill rod before shipment.
Q: Do you agree sample order?
A: Yes, we are welcome your sample order to testing our quality.
Q: Does your drill rod have heat treatment?
A: Yes, the heat treatment for our drill rods and casing pipes.
Q: Does your drill rod have rust prevention?
A: Yes, every one drill rod and casing pipe will be with the rust prevention by paint or anticorrosive oil before shipping. If you need galvanized pipes pls contact us the price.
